Full Height(FH)

Full Height (FH)

This full height system is perfect for complete privacy and is unisex compliant. It features floor to ceiling panels and doors with 20mm bottom clearance & 50mm top clearance to allow lift off hinge operation. Our privacy rebate is also available to eliminate door gaps & offer total concealment. This system is robust and suited to heavy use applications. Suited in schools, shopping centres, defense facilities, end of trip (EOT) facilities and unisex / gender neutral bathrooms. Only available in our waterproof materials.

full-height

Partition Specifications

  • Height

    To match ceiling height

  • Depth

    1600mm nominal

  • Division Panels

    Floor to Ceiling

  • Frontal Panels

    Floor to ceiling. Minimum width 160mm

  • Doors

    2630mm high x 600mm wide
    20mm floor / 50mm above door clearance
    Full height less clearances x 595mm wide to suit a 600mm opening

  • Ambulant Doors

    1700mm high x 720-750mm wide

  • Door Clearance

    20mm off floor, 50mm off ceiling to allow lift off hinge function

  • Headrail

    Clear anodised aluminium square or round headrail. Powder coating options available

  • Wall Channels

    Clear anodised aluminium U channel. Powder coating options available

  • Privacy Edge Profile

    Optional Rebated edge for total privacy

Floor Fixing Options

  • Angle Fixed

    Discrete angle fixings only visible from inside cubicle

  • Channel Fixed

    Floor U channel fixings with end caps

  • Pin Fixed

    Pinned directly into the floor with no visible fixing points

Ceiling Fixing Options

  • Angle Fixed

    Discrete angle fixings only visible from inside cubicle. Secure ceiling supports are required above the ceiling line.

  • Continuous Headtrack

    Full length ceiling headtrack. More sturdy option where no extra ceiling supports are required.

CFC Cement Sheet

View Project

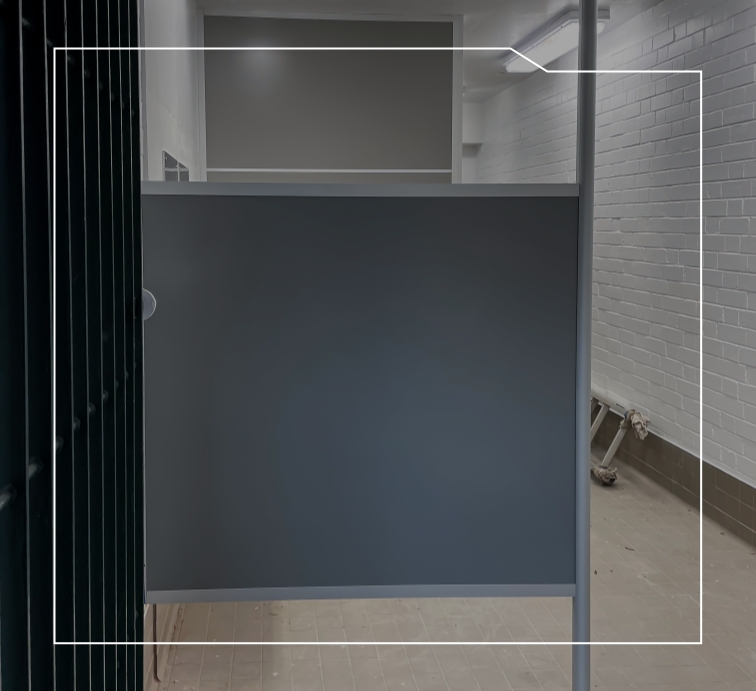

Urinal / Privacy Panels
