Floor Mount Overhead Braced(FOB)

Floor Mount Overhead Braced (FOB)

Fixed directly to the floor with an overhead brace to keep it all sturdy, this system is strong and low maintenance best suited for high traffic areas. Available only in compact laminate or Nuvex board guaranteed to perform well in the wet. Suited in shopping centres, schools, pubs, recreation facilities, gyms.

floor-mount-overhead-braced

Partition Specifications

  • Height

    2010mm

  • Depth

    1600mm nominal

  • Division Panels

    1700mm high with a 200mm floor clearance

  • Frontal Panels

    2000mm high. Minimum width 140mm

  • Doors

    1700mm high x 595mm wide to suit a 600mm opening

  • Ambulant Doors

    1700mm high x 720-750mm wide

  • Headrail

    Clear anodised aluminium square or round headrail. Powder coating options available

  • Wall Channels

    Clear anodised aluminium U channel. Powder coating options available

  • Privacy Edge Profile

    Optional Rebated edge for total privacy

Floor Fixing Options

  • Angle Fixed

    Discrete angle fixings only visible from inside cubicle

  • Channel Fixed

    Floor U channel fixings with end caps

  • Pin Fixed

    Pinned directly into the floor with no visible fixing points

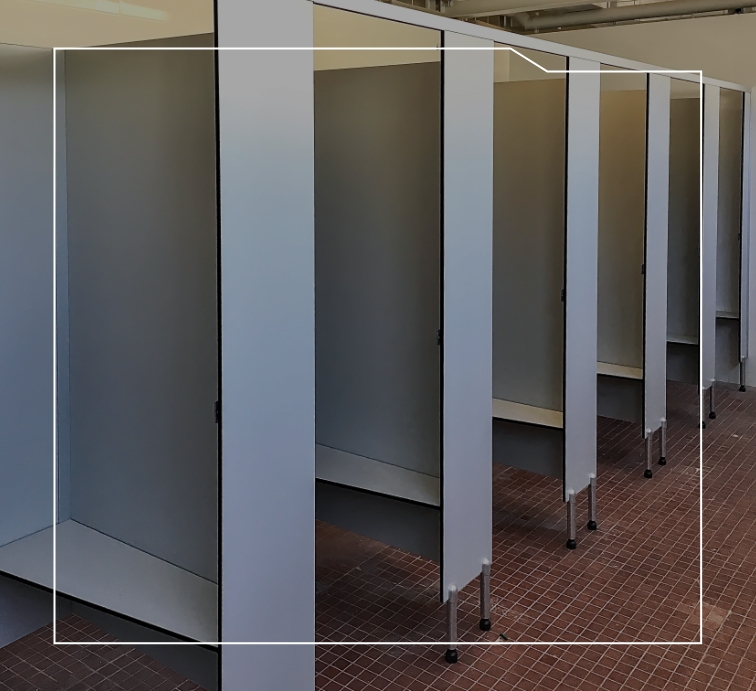

Pedestal Mount Overhead Braced (POB)
